PETMAP

Petmap + II Base unit, BT, SpO2 + temp.

Du må logge inn for å se priser.

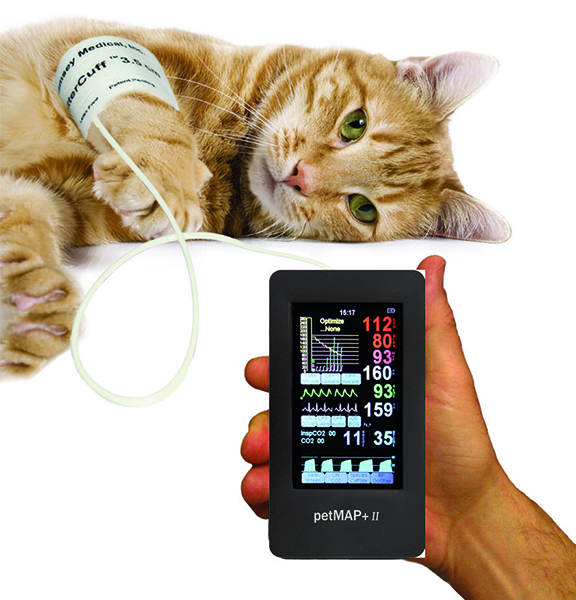

Petmap + II Base unit, BT, SpO2 + temp.

  • Proven petMAP technology with PPO (petMAP
  • Proprietary Optimizations)
  • O2 saturation with pleth display (optional)
  • Temperature monitor using esophageal probe
  • Easy tu use «no menu» touch screen display
  • Real-time display of oscillometric «envelope»
  • Selectable BP cycle times in OR mode
  • Tabular display of readings and NSV in clinic
  • Graphic display of last 45 readings in OR
  • Built in NiMH batteries and wall charger
  • A SD card slot allows to record all monitored and measured patient vital signs on a user supplied SD card
  • Optional CO2 and ECG modules
  • Optional pole or table mount

BLOOD PRESSURE RANGE:

  • Systolic: 40 – 265 mmHg
  • MAP: 30 – 200 mmHg
  • Diastolic BP: 25 – 195 mm Hg
  • Heart Rate Range: 40 – 240 bpm (PA et SpO2)
  • SpO2 accuracy: +/-3% in 80 – 100% range
  • Temprature accuracy: +/-2°C in 29°C – 46°C range
  • Dimensions: 15 x 8 x 3 cm
  • Weight: 400 gr (batteries included)
  • Battery: 4 AA batteries
  • Cuffs included: 2.0 – 2.5 – 3 – 3.5 – 4 – 4.5 and 5.5 cm
  • Temperature probe: + 2,4 m. extension cable
