OP-Set Interlocking nail 3.5

Implants

Interlocking nail with trocar point, Ø 3.5 mm, recess 2.1 mm, titanium

• length 109 mm
• length 119 mm
• length 130 mm

Cortical screw, Ø 2,0 mm, fully threaded, self tapping, titanium

• length 12 mm
• length 14 mm

Instruments

• hex screwdriver for drill guide for interlocking nails,wrench width 1.5
• drill bit for quick coupling, Ø 1.5 mm x 105 mm, spiral length 30 mm, double spiral
• drill bit for quick coupling, Ø 2.5 mm x 105 mm, spiral length 50 mm, double spiral
• drill bit for quick coupling, Ø 3.5 mm x 195 mm, spiral length 60 mm, double spiral
• drill guide for guide for interlocking nails, Ø 1.6 mm, serrated
• drill guide for guide for interlocking nails, Ø 4.0 mm, serrated
• targeting device for interlocking nails Ø 3.5 mm

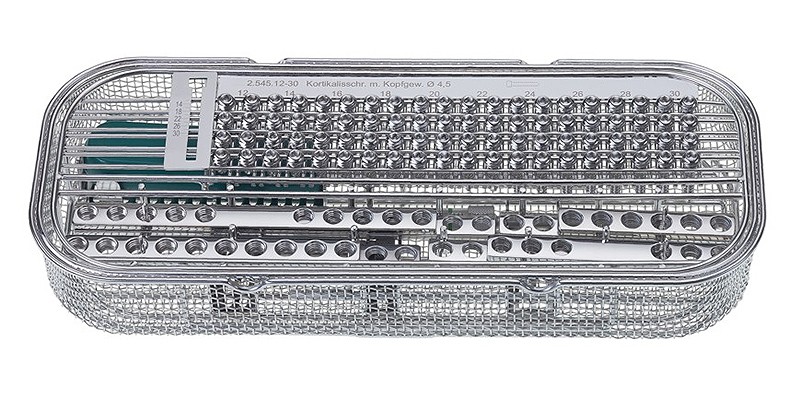

• perforated autoclavable container w.inset for instruments and interlocking nails
