Osteosyntesesett EickLoxx small system
Osteosyntesesett EickLoxx small system
The EickLoxx Small is a polyaxial locking kit for dogs and cats up to 15 kg.
The system distinguishes itself through the polyaxial placement of the custom-fit screws, combining the advantages of a locking plate system with polyaxial screw placement in +-15° longitudinal and transverse pivoting.
Compared to conventional osteosysnthesis systems, the use of internal fixation locking systems such as the EickLoxx Small facilitates faster healing of fractures and improved implant strength. It is for this reason that the removal of plates and screws is rarely indicated.
The biologically advantageous Titanium plates are available in three sizes, can be cut to the desired length and be bent in three planes. Specially designed tools are included to perform this. Titanium also reduces artefacts in post-operative imaging.
EickLoxx Small is a modular system. All implants and instruments are made in Germany using only the highest quality raw materials.

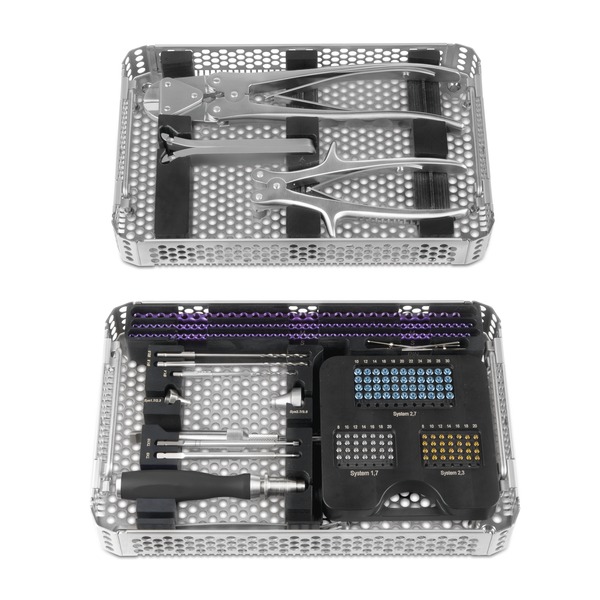

Set includes:

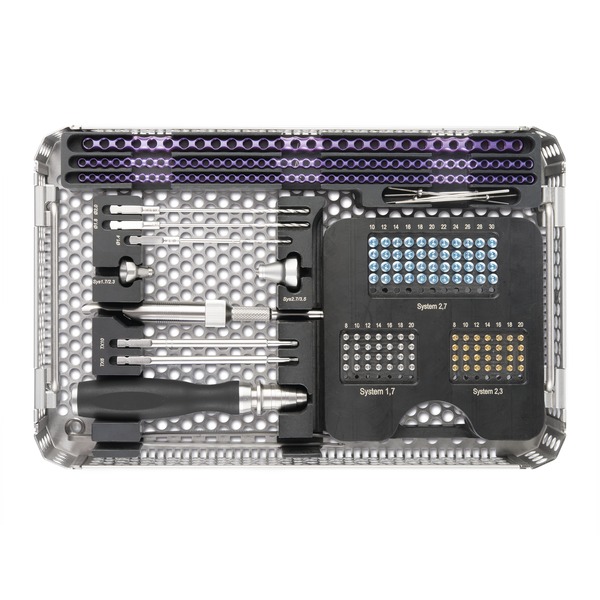

- Instrument Tray
- Implant Tray
- Screw Rack

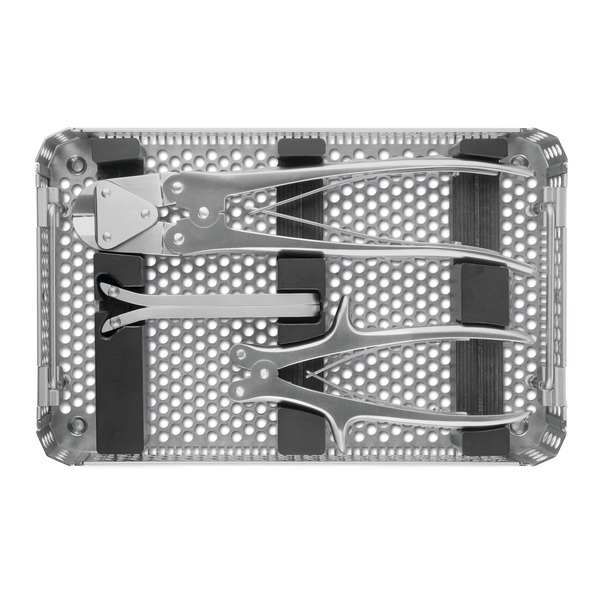

- TAURUS Plates and Wire Cutting Pliers
- Plate bending Pliers with Rollers
- Bending Levers (Pair)
- 3x Twist Drill (Ø 1.4 mm, Ø 1.8 mm & Ø 2.0 mm)
- 2x Screwdriver (Torx 6 & Torx 10)
- 2x Drill-Guide Funnel System (1.7 / 2.3 & 2.7 / 3.5 )
- Plate and Screw Holding Forceps
- Silicone Screwdriver Handle
- 4x Plate Positioning Pin (Ø 1.4 mm, Length 63 mm)
- Depth Gauge
- Bone Plate 46 Hole, System 1.7 / 2.3 (L 230 x W 5 x H 2 mm)
- Bone Plate 41 Hole, System 1.7 / 2.3 (L 225 x W 6.5 x H 2.4 mm)
- Bone Plate 28 Hole, System 2.7 (L 224 x W 8 x H 2.7 mm)
- 7x Titanium Locking Screw Ø 1.7, Torx 6 (Length 8 mm to 20 mm)
- 7x Titanium Locking Screw Ø 2.3, Torx 6 (Length 8 mm to 20 mm)
- 11x Titanium Locking Screw Ø 2.7, Torx 10 (Length 8 mm to 30 mm)
- Container (L 312 x W 183 x H 122 mm)
