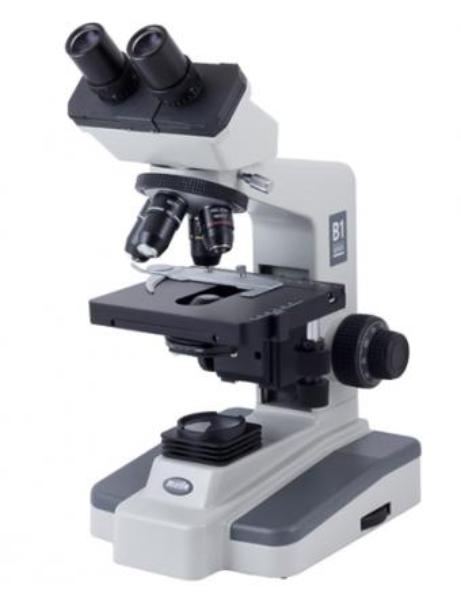

Mikroskop Motic B1-220E-SP

550001 Mikroskop Motic B1-220ASC

45° inclined Binocular head for comfortable viewing while seated, rotates 360°

Technical specifications:
- Widefield eyepieces WF10X/20mm
- Interpupillary distance adjustment between 55 and 75mm
- Revolving quadruple nosepiece with positive click stops for precise
  magnification changes
- Achromatic Super Contrast objectives, parfocal and parcentric 4X/0.10,
  10X/0.25, 40X/0.65 - Spring, 100X/1.25 – Spring/Oil
- Coaxial coarse and fine focusing system with 2 micron minimum increment
  with upper limit stop to prevent damage to slides and objectives
- Vertical travel range 27mm
- Focus tension adjustment prevents stage drift
- Large 140mm X 135mm mechanical stage with low-position coaxial controls.
  Travel range 78 X 50mm
- Rack & Pinion mounted 1.25 N.A. Abbe condenser with iris diaphragm
  and filter holder
- 12V/20W Halogen illumination with intensity adjustment
