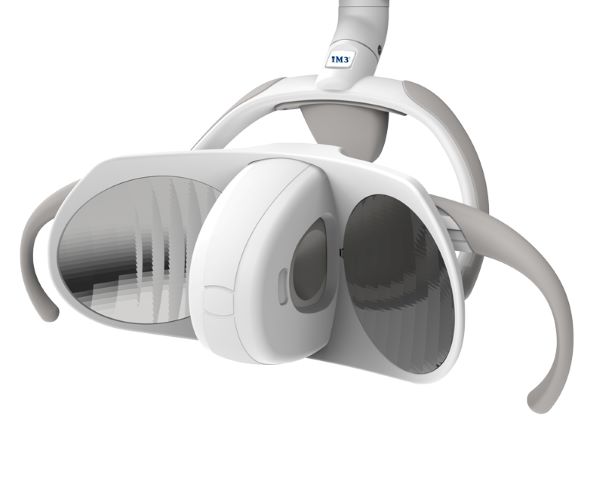

iM3 Veterinary Dental light, wall mount
Wall mounted.
Larger spot for a true veterinary dental light.
The iM3 Veterinary Dental Lights use advanced LED technology, designed specifically for veterinary. Unlike human dental lights with small focus areas, our veterinary exclusive lights offer a lighted field of 300 x 200 mm at a distance of 1 meter.
Field uniformity.
Thanks to the exclusive reflected light optical project, through the 258 small reflecting facets of the two parables, the iM3 Veterinary Dental Light avoids direct vision of the 2 LED from the light source.
The lamp, at a distance of 1 meter, achieves a uniform lighted field of 300 × 200 mm.
Scialytic effect.
The scialytic effect of the iM3 Veterinary Dental Light generates an ellipse of only 9 × 6 mm.
One of the main functions is to limit any shadows so that the doctor can count on an operating area that is clear and uniform. Its configuration is designed to produce a uniform beam from multiple spots. This reduces the presence of shadows to a minimum, the “scialytic” term comes Greek and stands for “dissolved shadows”.

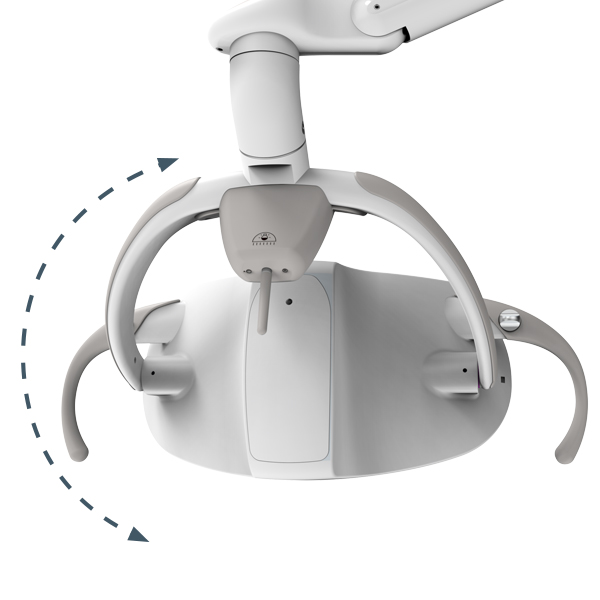

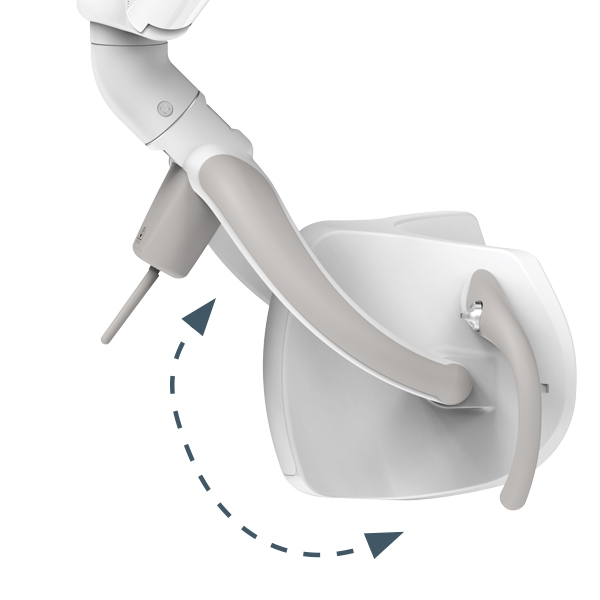

3D Rotation
Perfect balancing, combined with the exclusive 3D rotation system of the head on its optical axis, ensures optimal precision for light beam orientation, reducing the risk of glare to a minimum.
Spot 300 x 200 mm
The 300 x 200 mm spot dimension and 35,000 LUX intensity, make the iM3 Veterinary Dental Light the ideal for multiple uses, ensuring a great versatility of use.
Specifications
- Power supply voltage - 24 Vac - 50/60Hz - 24 Vdc
- Power consumption - max 9 VA
- Lux - from 3,000 to 35,000 (at a distance of 1 m)
- Light spot dimension - 300 x 200 mm (at a distance of 1 m)
- Cooling system - Static heat sink (no fan required)

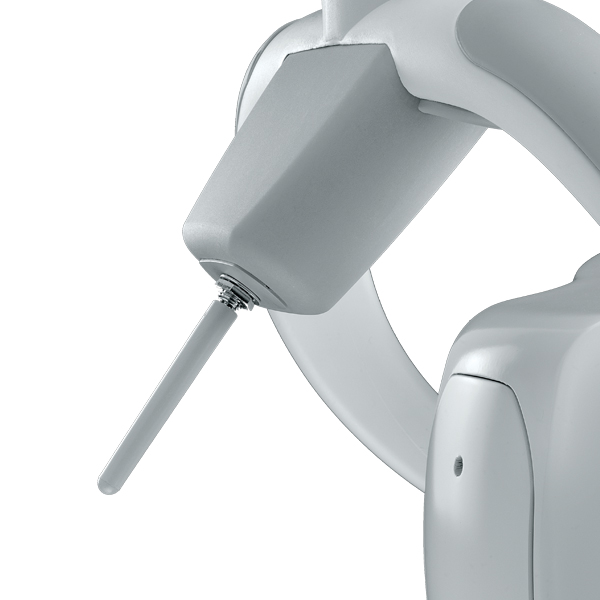

- Handles - Removable and autoclavable
