iM3 OP1 Piezo Surgery Unit

Du må logge inn for å se priser.

iM3 OP1 Piezo Surgery Unit

The iM3 OP1 piezo surgical system is a smart choice for bone surgery, sinus lifts, periodontal surgery, endodontic surgery, and orthodontics.

The OP1 features a touch screen interface and wireless Bluetooth foot switch providing ease of use. In addition, the device utilizes a modulated driving signal which boosts the vibration of the bone saw and allows shorter treatment time and effective cutting on hard and deep sections. The OP1 comes equipped with an automatic gain closed loop control circuit that locks-in the optimal frequency of the tip based on constant conditions.

The OP1 is compatible with tips from most major brands, which allows you to use your favorite tips.

ISO and CE certified 510K registered


  • Touch screen interface
  • Wireless Blutooth foot control
  • Auto gain closed loop control circuit
  • Safe mode

Included Parts and Accessories:

  • OP1 Main Unit
  • Hand piece

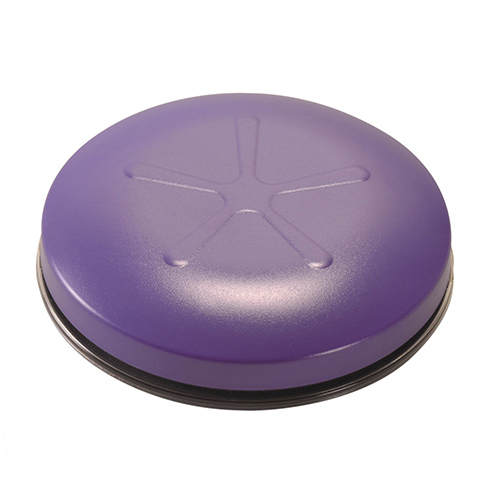

  • Foot switch
  • Stainless steel container for holding accessories during sterilization
  • Torque controlled metal wrench designed to prevent tips from breaking during installation
  • Assorted tip set with tip holder


  • Power Supply:
  • 110v-115V ±5% ~50/60Hz 30VA
  • 220-230V ±5% ~50/60Hz 30VA
  • Working Frequency: 26KHz ~ 32KHz
  • Delivery Rate of Pump: Max. 100 ml per minute
  • Device dimension:
    • 20cm(L) x 36cm(W) x 11cm(H)
    • 7.87inches x 14.17inches x 4.33inches
  • Irrigation bag stand length: 45 cm / 17.72 inches
  • Hand piece and cable assembly length: 250 cm / 8.20 ft.
