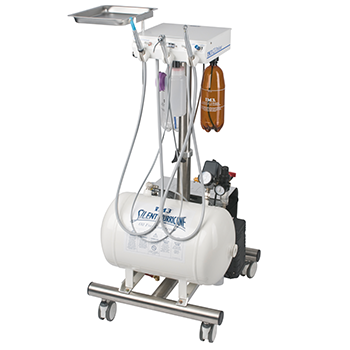

iM3 GS Deluxe LED with Oil Free Comp.w/water low speed

iM3 GS Deluxe LED with Oil Free Comp.w/ water low speed

The GS Deluxe LED is a complete dental system with advanced features not found on any other dental machine. The industry’s first self-generating LED high speed swivel handpiece removes the need for troublesome fibre optic wiring, expensive krypton bulbs, switches, and transformer. The low speed handpiece and nose cone swivels for comfort and reduces the strain on the hand. The GS Deluxe is fitted with two coolant bottles, one for the CLS solution and the other for water. The use of CLS in the dental machine allows easy application of chlorhexidine into the mouth during dental procedures.

Maintenance instructions are printed on the back of the machine right where you need them.

The GS Deluxe LED is supplied with the following high quality handpieces:

• High speed swivel LED handpiece and 360 swivel coupling
• 3 way syringe (air, water and mist)
• Low speed handpiece
• Stainless steel instrument tray with silicon pad provides added storage and is height adjustable and removable

The GS Deluxe features an adjustable coolant flow valve allowing the user to regulate the amount of coolant from the high speed handpiece. All iM3 toggles, buttons, and auto HP valves can be changed in seconds due to the cartridge valve system used by iM3. This advanced feature allows for the quick cleaning and replacement of valves reducing machine down time and loss of revenue.

The GS Deluxe with its built in IEC powerboard and coolant outlet, allows for the easy integration of an ultrasonic scaler. The iM3 42-12 ultrasonic scaler, or any brand of scaler, can be connected to the water and power supply of an iM3 dental machine. The dental machine is self-contained and only one power cord is required to power the machine and ultrasonic scaler.

The covered oil free compressor makes cleaning and maintaining a breeze. iM3´s unique technology means the compressors air is cooled on the way to the dental machine. The side of the compressor is left open to allow adequate ventilation; no continuous running fans are required.

The dental machine chassis is made from aluminium with hospital grade powder coating. The machine control box and components are covered by a full 5 year warranty.

U3019 – GS Deluxe LED with "Silent" Compressor, mobile height adjustable floor stand, iM3 handpieces: LED HS with swivel, LS Motor, & 4:1 Straight Nose Cone.

U3019SW - Includes the U3019, in addition, the Low speed motor and Contra-Angle HP LED both have internal water.

NEW SW (Slow Speed Water) Range includes internal water on the low speed handpiece in addition to the standard features found on the GSD LED. The SW machine is supplied with a low speed motor (with forward and reverse) and a 1:1 LED contra angle handpiece both with water. Recommended by some European specialists for removing bone, the SW machine also includes the 4:1 straight nose cone for polishing (L6250).

U3018 – GS Deluxe LED with mobile S/S floor stand & iM3 handpieces: LED HS with swivel, LS Motor, & 4:1 Straight Nose Cone (no silent compressor supplied)

U3017 – GS Deluxe LED with long reach wall arm & iM3 handpieces: LED HS with swivel, LS Motor, & 4:1 Straight Nose Cone (no silent compressor supplied)

The GS Deluxe can be supplied with a height adjustable (50cm), long reach (150cm), pneumatic wall arm. The arm allows the machine to be stored against the wall and extended to the end of the wet table for use.

The airline and electricity for the dental machine are contained in the arm, removing unnecessary cables from the ground.
