Hydro Physio Vanntredemølle, Canine 5
Hydro Physio Vanntredemølle, Canine 5

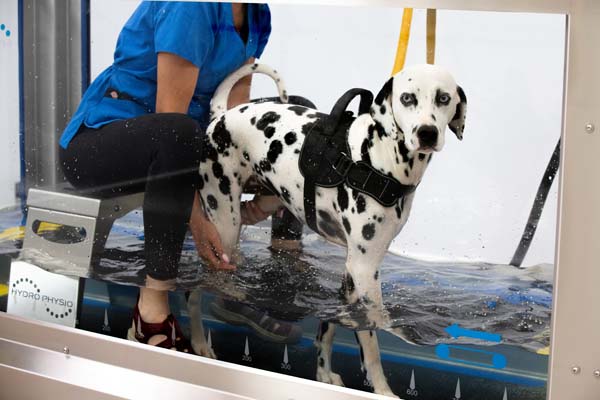

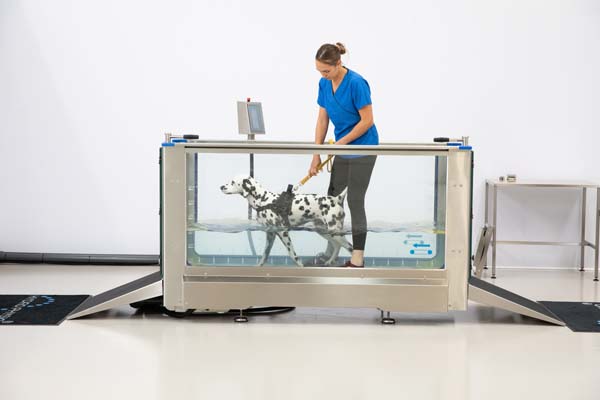

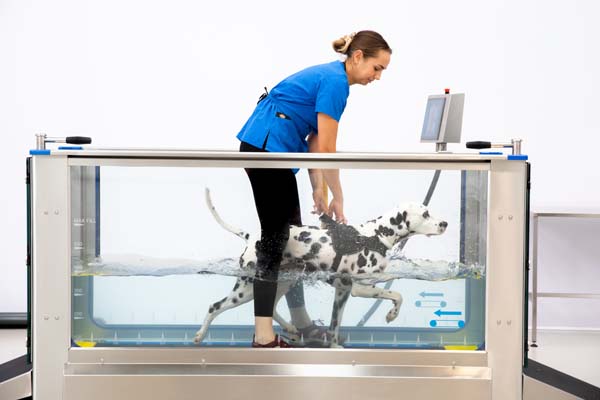

Our canine treadmills are loved by hydrotherapists the world over. Designed and manufactured in the UK HYDRO PHYSIO treadmills are renowned for innovation, ease of use and dependability.
BSI standard accredited we instil quality and excellence throughout every stage of the design and manufacturing process to produce outstanding products together with dependable service.
We appreciate investing in an hydrotherapy treadmill is a major decision and invite customers to visit our facilities to provide you with confidence that choosing a HYDRO PHYSIO treadmill is the right choice for your business.
FEATURES

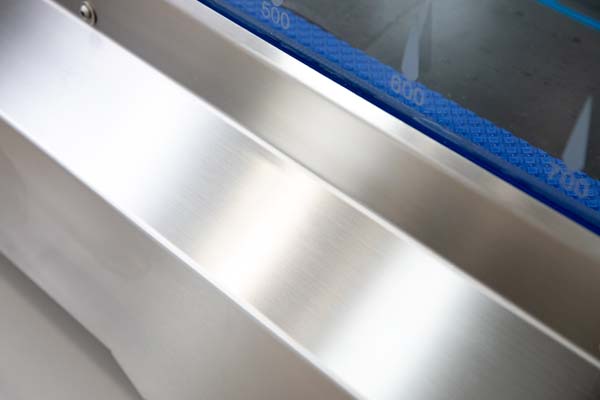

- MEDICAL GRADE STAINLESS STEEL WALK THROUGH DESIGN WITH ENTRY/EXIT DOORS

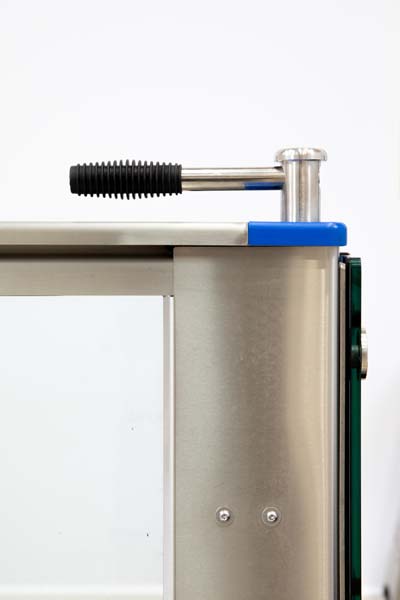

- EASY OPERATION, TWO STAGE SAFETY DOOR LATCH
- STRUCTURAL GLASS WITH ALL ROUND PATIENT VISIBILITY
- SIDE PLATFORMS FOR THERAPIST

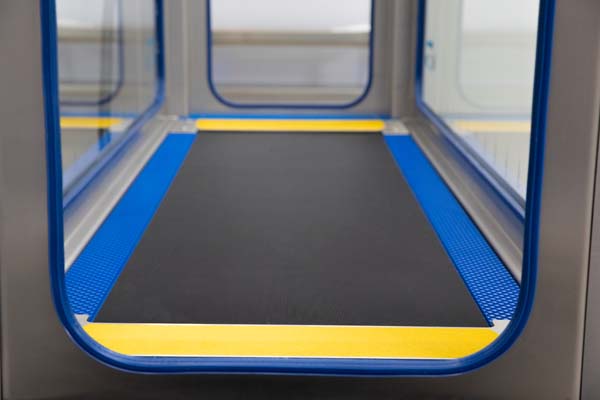

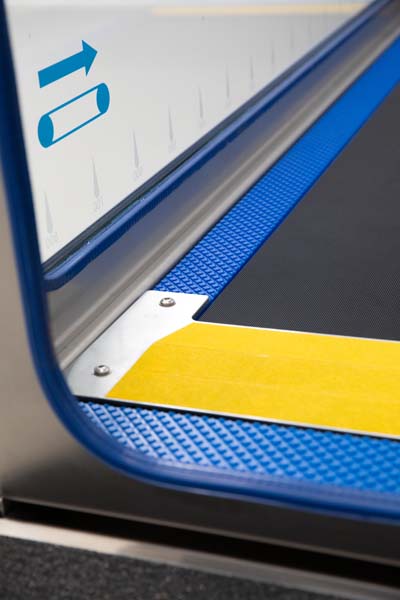

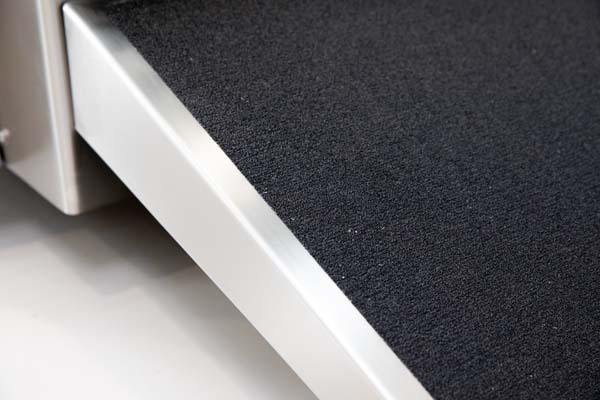

- ANTI-SLIP SURFACES ON CHAMBER AND RAMP
- REVERSIBLE BELT DIRECTION
- WATER DUMP VALVE ON CHAMBERPOWERED INCLINE
- POWERED TREADMILL LIFT FOR EASY CLEANING
- HI-VIS END GUARDS FOR INCREASED SAFETY

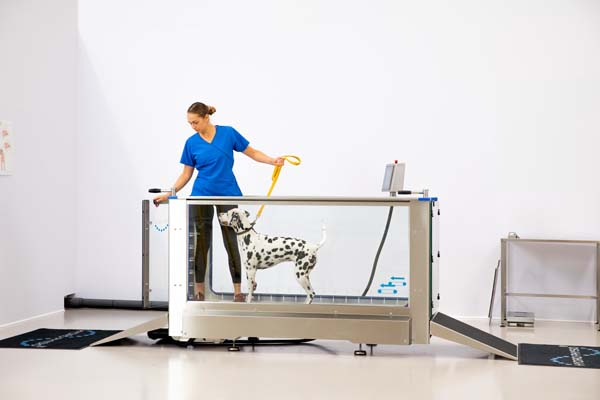

- FLOOR LEVEL RAMPS TO ASSIST PATIENT ACCESS
- ADJUSTABLE CONTROLS POSITIONING
- CONTROL FROM PORTABLE DEVICES
- REMOTE SERVICE DIAGNOSTICS
- PATENT APPLICATIONS FILED
OPTIONS
- ALTERNATIVE DOOR SWING
- EXTENDED RAMPS

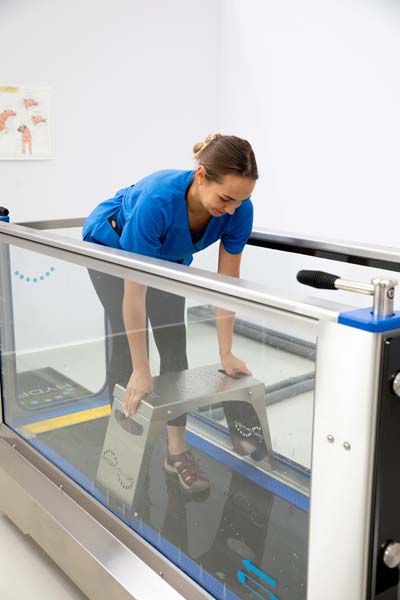

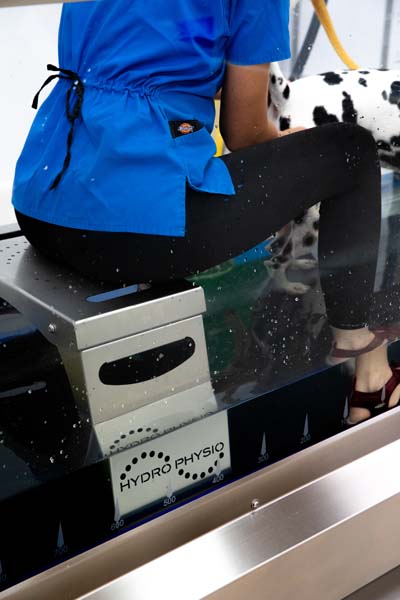

- THERAPIST SEAT
- DOG ISOLATION PLATE
- HARNESS FRAME & TETHER POINTS
- POOL FED SYSTEM
TECHNICAL SPECIFICATIONS
Maximum load - 100kg (220lbs) without buoyancy
Maximum water depth - 0 - 600mm (24”)
Speed range - 0.2 - 12kph (0.12 - 7.5mph)
Fill / empty times - Approx 2 minutes to max depth
Temperature range - From ambient - 40°C (104°F)
Treadmill dimensions (Excluding display) E
Excluding ramps - L 2150mm (85”) x W 860mm (34”) x H 1265mm (50”)
Including ramps - L 3435mm (135”) x W 860mm (34”) x H 1265mm (50”)
Complete system weight
Dry - 650kg (1433 lbs)
Full - 2150kg (4740lbs)
Capacity - 1500 litres (330 gals, 396 US gals)
Max distance between treadmill and plant equipment - 10m (394”)
Power - 240V single phase 50hz 16A (60hz option available)
