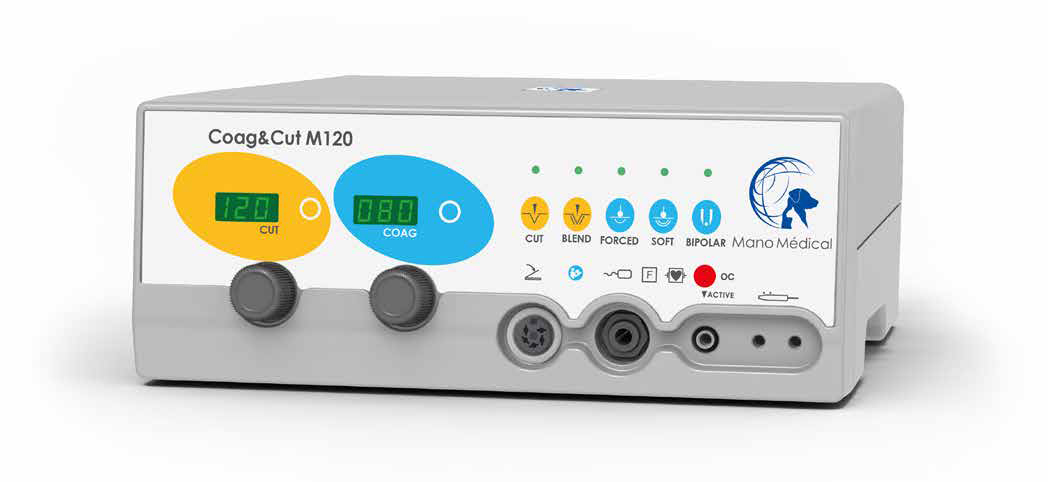

Electro surgery unit Coag&Cut bipolar, diatermi
Perfect for daily small and medium surgeries
The Coag&Cut M120 package includes :

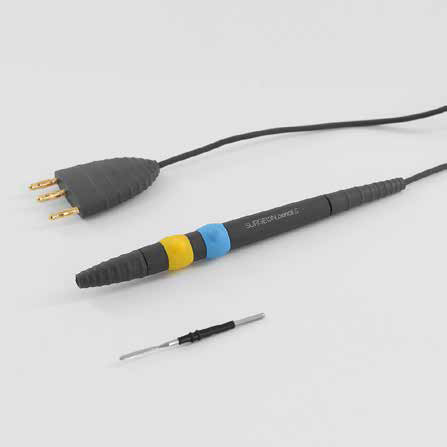

- A monopolar handpiece with a straight blade electrode

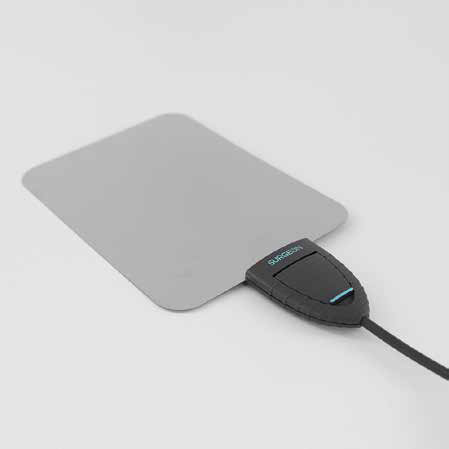

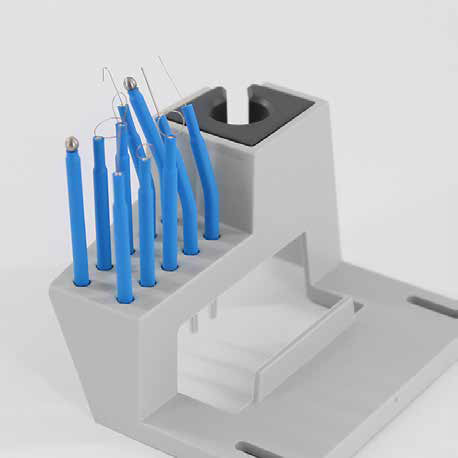

- A set of 10 additional electrodes (needles, loops, balls) + support 4 A patient return electrode with cable

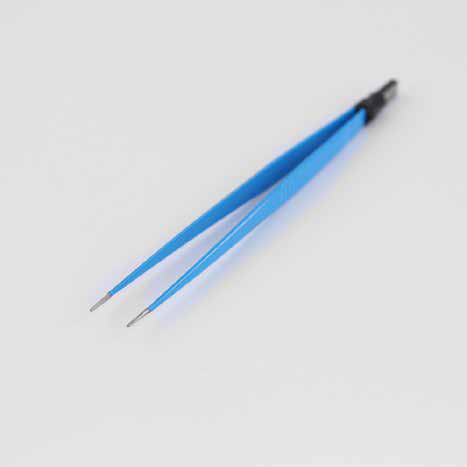

- A bipolar handpiece with cable

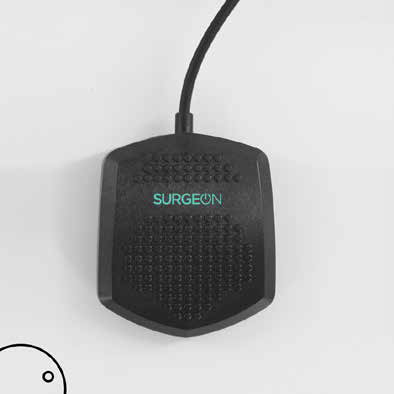

- A single footswitch
- All the accessories are autoclavable to ensure durability and good hygiene
The high-performance Coag&Cut M120 has a number of operating modes :
Cutting :
- CUT = pure Cut
- BLEND = Cut with Coagulation
Coagulation :
- FORCED = Superficial Coagulation
- SOFT = Deep Coagulation
- BIPOLAR = Standard Bipolar Coagulation
Reliability
The digital power setting display and the continuous monitoring of the operational function by microproces-sor guarantee an absolute reliability of working condi-tions.
Certified compliant MDD/93/42 EC Class: IIb
Safety
The connection to the neutral plate is continuously monitored.
The monopolar handpiece, when used without a footswitch, allows to choose and activate either the Cut Mode (yellow button) or the Coagulation Mode (blue button). Coupled with the footswitch, it allows to choose the function which is activated only by the footswitch. Surgical procedures can be done safely.
Compliant with safety standards EN60601-1-1 / EN60601-1-2
Efficient
Maximum Output Power:
- CUT : 20W-250Ω
- BLEND : 90W-200Ω
- FORCED : 80W-150Ω
- SOFT : 60W-100Ω
- BIPOLAR : 40W-100Ω
Working frequency : 600kHz
Main frequency : 50-60 Hz
Electrical input power : 300 VA
Size & Weight : 25 x 10 x 29 cm – 5 kg
