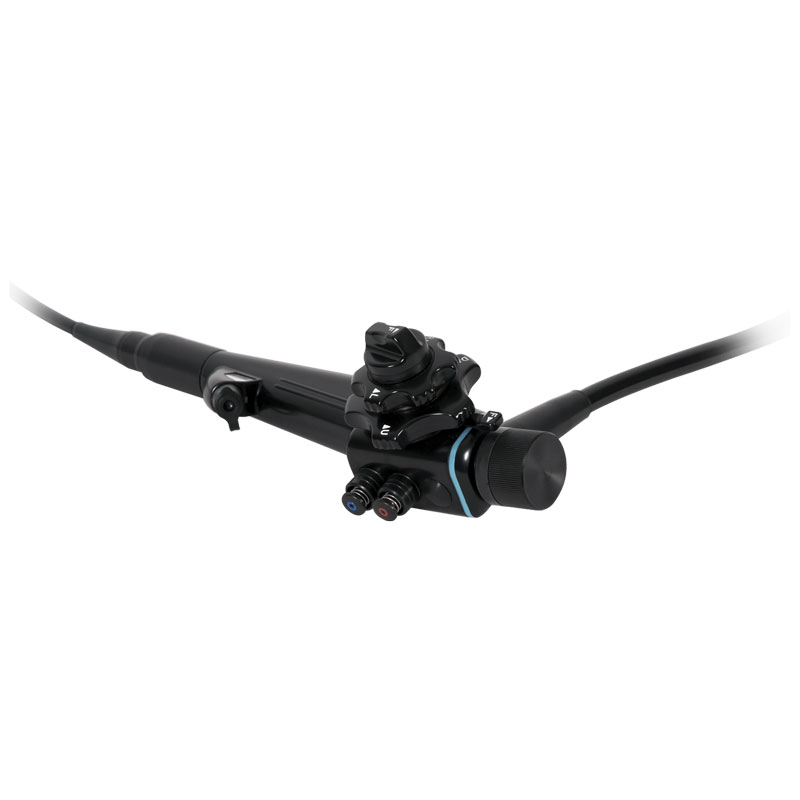

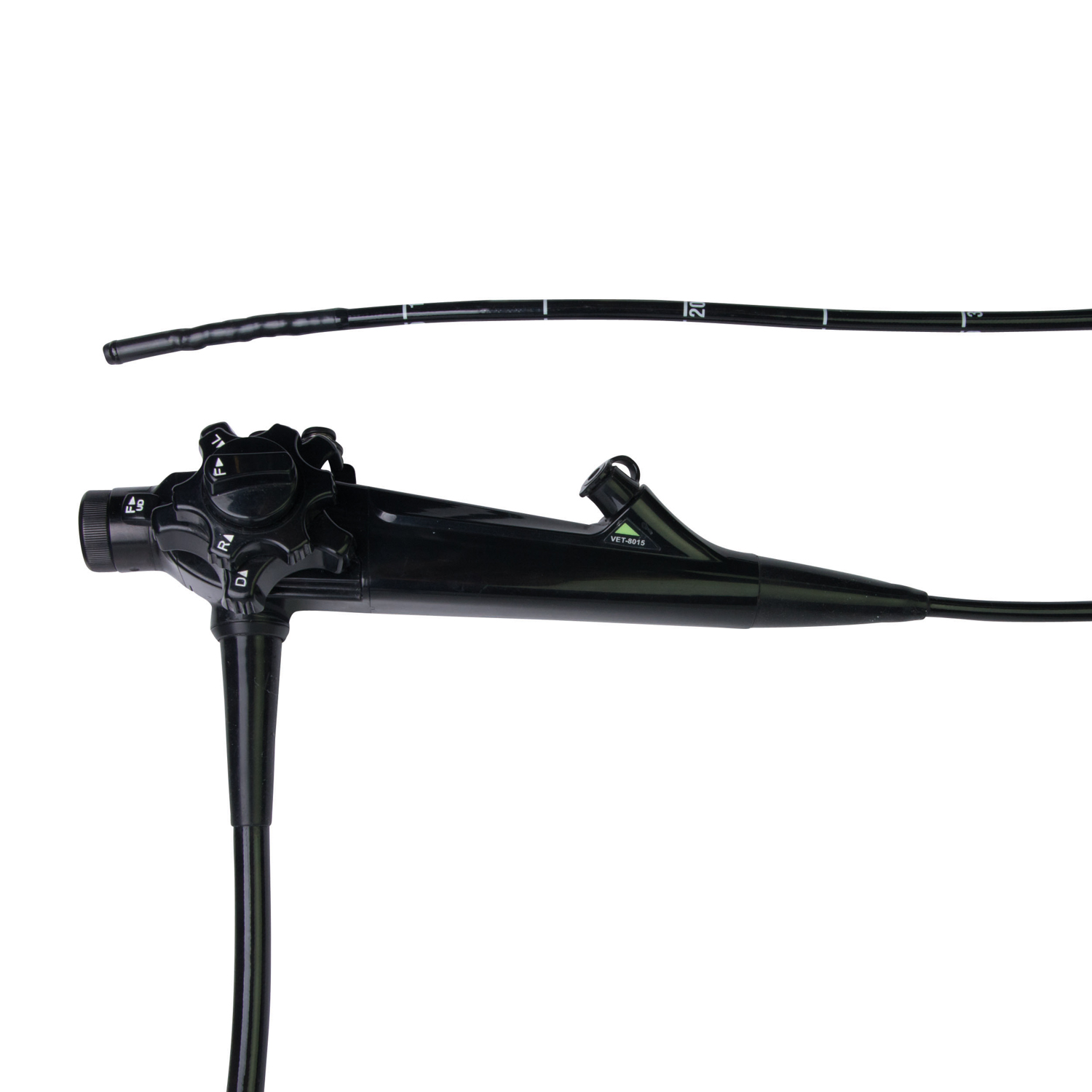

Eickview 300 HD Endokop, 300cm Ø13,0 WC3,2mm
The EickView 300 HD video endoscope delivers even more brilliant images with the same size thanks to the further improved video chips. The main areas of application for EickView HD video endoscopes are bronchoscopy and gastroscopy. The variety of endoscope sizes available means you can carry out examinations from small animals to horses. The scope of delivery of the endoscope includes a pressure tester, 2 cleaning brushes, a cleaning set and a transport case.
Technical data
- Working length: 300 cm
- Total length: 335 cm
- Distal end outside: Ø 13.0 mm
- Insertion tube outside: Ø 12.8 mm
- Working channel: Ø 3.2 mm
- Field of view: ≥ 140°
- Viewing direction: 0°
- Depth of field: 5 - 100 mm
- Resolution: 1,000,000 pixels

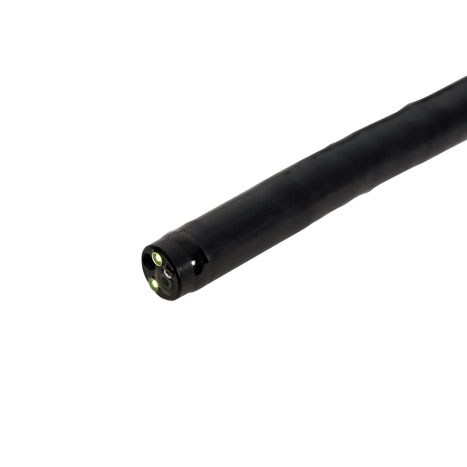

- Distal end includes 1 CMOS camera chip 1/6", 2 light guides, working channel, lens irrigation nozzle
- LED light source: 30 W (>190,000 lux cf. 150 W xenon)
- Angle at top: 180°
- Angle at bottom: 180°
- Angle left/right: 160°
scope of delivery
- EickView 300 PRO HD video endoscope, pressure tester, 2 cleaning brushes, cleaning set, transport case
