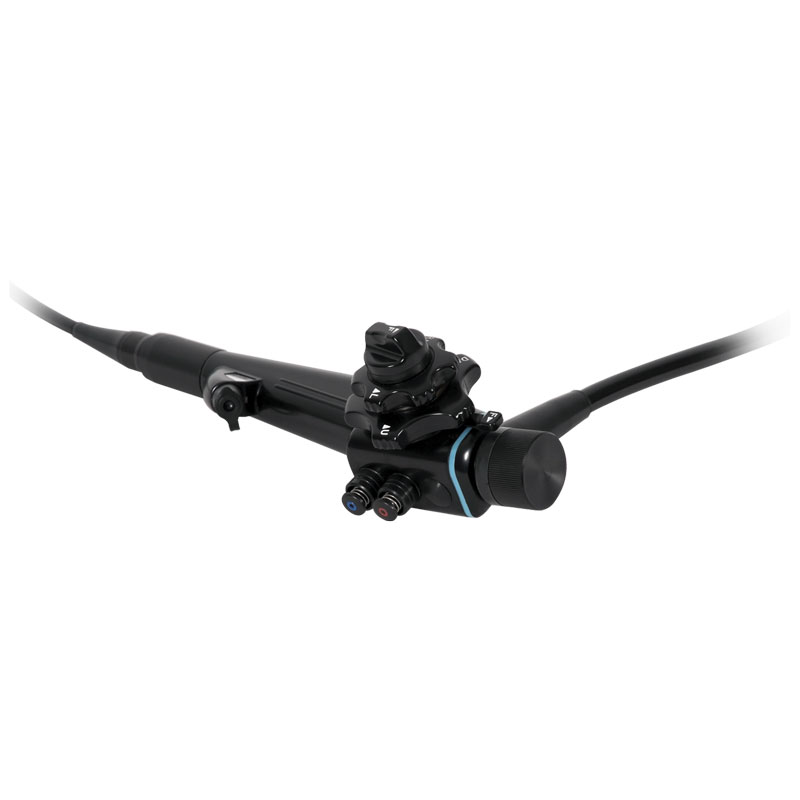

Eickview 150L HD Endoskop, 150cm Ø9,2 WC2,8mm
video endoscopes are bronchoscopy and gastroscopy. The variety of endoscope sizes available means you can carry out examinations from small animals to horses. The scope of delivery of the endoscope includes a pressure tester, 2 cleaning brushes, a cleaning set and a transport case.
Technical data
- Working length: 150 cm
- Distal end outside: Ø 9.2 mm
- Working channel: Ø 2.8 mm
- Field of view: ≥ 140°
- Viewing direction: 0°
- Depth of field: 5 – 100 mm
- Resolution: 1,000,000 pixels

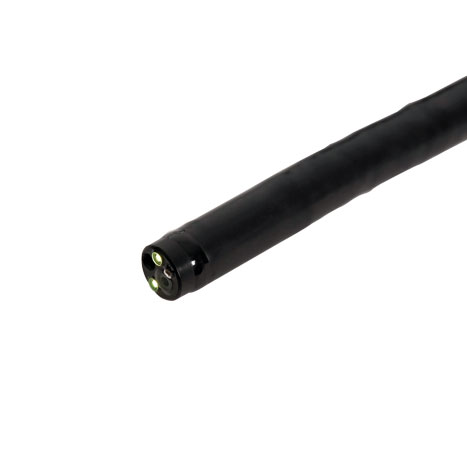

- Distal end includes 1 CMOS camera chip 1/6", 2 light guides, working channel, lens irrigation nozzle
- LED light source: 30 W (>190,000 lux cf. 150 W xenon)
- Angle at top: 210°
- Angle at bottom: 90°
- Angle right / left: 100°
scope of delivery
- EickView 150L PRO HD video endoscope, pressure tester, 2 cleaning brushes, cleaning set, transport case
