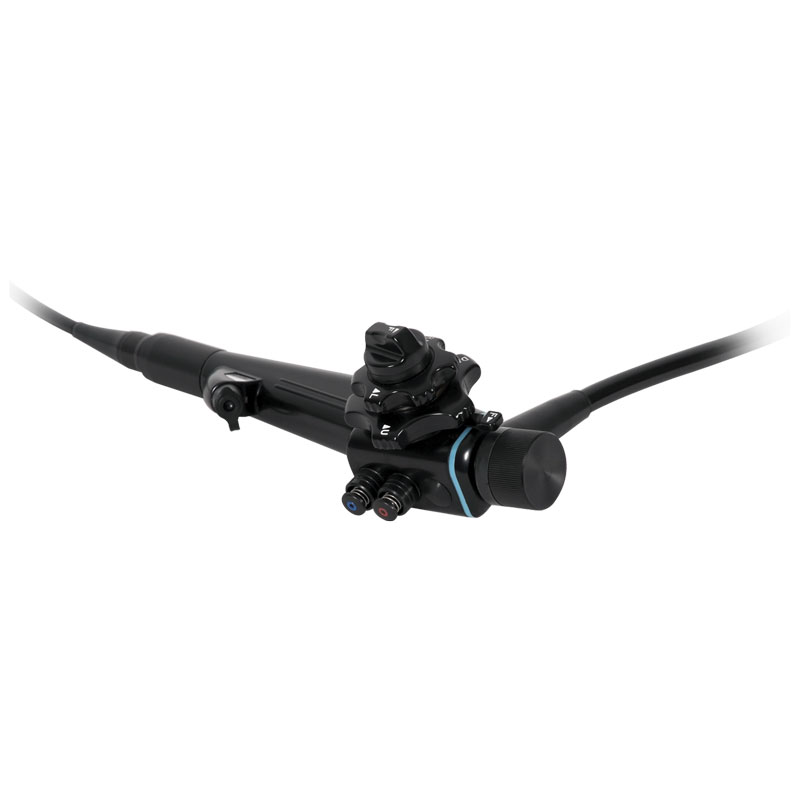

Eickview 150-6 HD+ Endoskop, 150cm Ø6,0mm WC2,8mm
The EickView 150-6 HD+ video endoscope delivers brilliant images during bronchoscopy and gastroscopy. HD+ endoscopes are characterized by their reduced outer diameters and enlarged working channels. The wide range of available endoscope sizes allows you to perform examinations on everything from small animals to horses.
Technical Specifications
- Working length: 150 cm
- Outer distal end: Ø 6.0 mm
- Working channel: Ø 2.8 mm
- Field of view: 120°
- Direction of view: 0°
- Depth of field: 2 – 100 mm
- Resolution: 1,000,000 pixels
- Distal end includes 1 1/6" CMOS camera chip, 2 light guides, working channel, lens rinsing nozzle
- LED light source: 30 W (>190,000 lux compared to 150 W xenon)
- Top deflection: 210°
- Bottom deflection: 90°
- Right/left deflection: 100°
