Cardioline EKG Unit, ECG 100L

Du må logge inn for å se priser.


ECG100L is a 12-lead 6 channel fully diagnostic electrocardiograph which displays, acquires, prints and stores ECG tracings for your patients.

It features a 5” colour touchscreen display, from which all operations can be easily performed. A smart user interface guides the user through the different steps necessary to acquire the electrocardiogram. Various messages on the screen inform the user of the ongoing operations and will signal a warning in the event of errors (for example in case of lead fail).

The ECG EasyApp has been designed to easily allow you to handle a patient ECGs.


  • 5 » Color Touch Screen
  • 12-Lead 6 Channel ECG

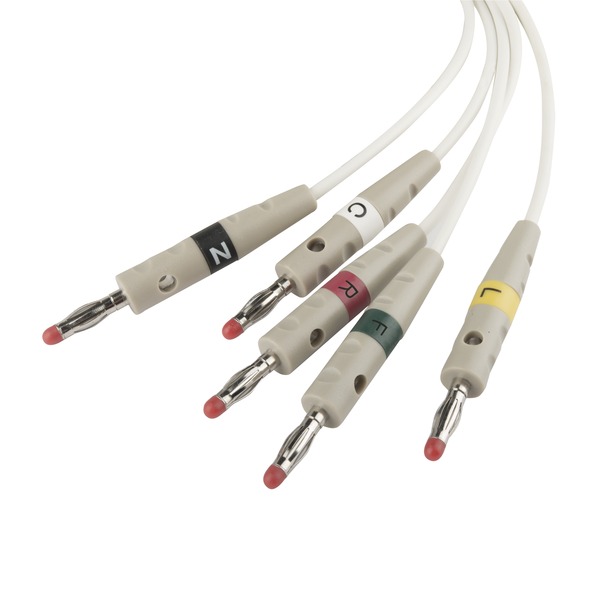

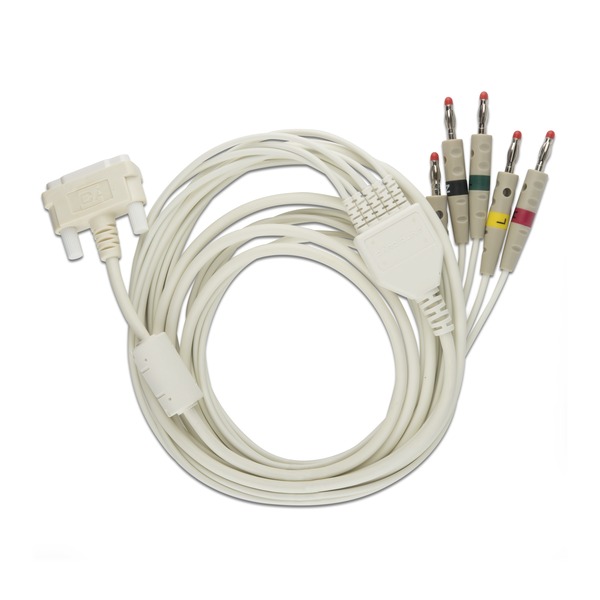

  • 5-pin Patient Cable
  • Sensitivity: 5, 10, 20 mm / mV
  • 4 writing speeds: 5, 10, 25, 50 mm / s
  • 50 ECG memory locations
  • Battery or mains operated
  • Printing formats: Standard or Cabrera 3, 3+1, 3+3 or 6 channels in automatic mode and 3 or 6 channels rhythm strip printing
  • 100 mm wide paper roll
  • Dimensions (mm): L 285 x W 204 x H 65
  • Weight: approx 1.85 kg
